Screw Removal Kit (SRK-01)

Description

Safely remove damaged/stripped dental implant connection abutment screw. Rescue kit for all dental implant specialist.

The only you kit you need to remove a fractured or broken screw and save the implant. Based on the proven counter-torque and reverse screw technique.

Fractured Screw Removal Kit Components

 Reverse Threaded Screw Removal Tool

The kit utilizes specialized screw removal drills to prepare a channel in the long axis of the screw. Then a self-tapping, reverse threaded screw removal tool is inserted and turned slowly to provide an engaging instrument which grabs hold of the fractured screw and unscrews it.

Certain Guides: Protect Implant Body and Position Drill in Center

The system also includes a series of certain guides which protect the internal aspect of the implant body from the damaging effects of drills touching the threaded internal surface. The guide abutment system also allows the initial drill and the reverse tip to be positioned in the center of the broken screw.

Procedure:

  • Pick guide for abutment
  • Attach guide and hold it with holder
  • Use screw remover drill to take hold of the core of the broken screw in a reverse manner (1200 rpm)
  • Use tap to remove the broken screw in a reverse manner (30 rpm)

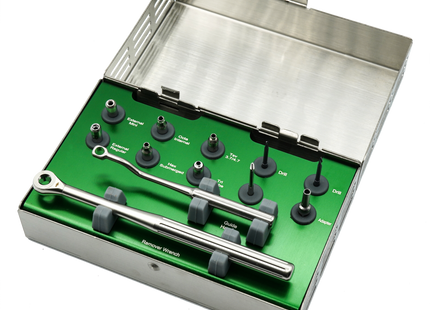

Kit includes:

  • 1 Tap (SRT-01)
  • 2 drills (SRD-01)
  • Adaptor (SRA-01)
  • 1 guide handle (SRG-H)
  • 1 remover wrench (FRW-01)
  • 6 guides for various implant systems (see below)

Instruction for Use including screw guide compatibility chart

Included compatibility guides:

Hex Guide (H)
Astra Osseospeed TX 4.5/5.0
Dentium Internal Hex
Hiossen SS and GS
Lifecore Stage 1
Megagen ExFeel Internal Hex
NeoBiotech Internal Hex

Octa Guide (O)
Implant Direct SwishPlant
Implant Direct SwishPlus
Straumann ITI Tissue Level
Zimmer SwissPlus

External Mini (M)
Hiossen US (ET III)
Megagen ExFeel External Hex
Nobel Biocare Branemark System NP
Steri-Oss HexLoc 3.25
Steri-Oss Replace SD
Sterngold-Implamed NP

External Regular (W)
3i Cylindrical 4.0
3i Osseotite Miniplant 3.75
3i Osseotite
Nobel Biocare Branemark System Mk III and Mk IV
Nobel Biocare Branemark System Mk III Groovy (Nobel Speedy Groovy)
IMZ HexHead 3.3 and 4.0
Intralock 3.75 and 4.0
Keystone Restore
Lifecore Sustain
Megagen ExFeel External 4.0
Nobel Biocare Branemark System RP 4.1
Steri-Oss Hex-Loc 3.8 and 4.5
Steri-Oss Replace MD
Steri-Oss Replace WD
Sterngold Swede-Vent 3.75

TSV 3.7/4.7
BioHorizons Tapered Internal 3.7 and 4.7
BioHorizons Tapered Internal Plus 3.7 and 4.7
BioHorizons Tapered Tissue 3.7 and 4.7
BioHorizons Single-Stage 3.7 and 4.7
BlueSky Bio Internal Hex 3.5 and 4.5
BlueSky Bio Molar 3.5 and 4.5
Implant Direct SwishPlant 3.7
Implant Direct SwishPlus 3.7
Implant Direct Legacy (3.7 and 4.7 internal hex)
MIS 3.3, 3.75, and 4.2
Zimmer TSV 3.7, 4.1 and 4.7
Zimmer Bio-Vent SD and MD
Zimmer Core-Vent SD and MD
Zimmer Micro-Vent SD and MD
Zimmer SwissPlus 3.7 (Internal Hex)

Tri-Lobe
Implant Direct RePlant 3.5
Implant Direct RePlus 3.5
Implant Direct ReActive 3.5
Nobel Biocare Tri Lobe Systems NP


Other Guides Available for Purchase Separately


3i Internal NP
3i Certain Implant Hex Narrow Platform (3mm Platform)
Implant Direct ScrewPlant
Implant Direct ScrewPlus
Zimmer SwissPlus 3.7, 4.1, 4.8 (Internal Octagon)

3i Internal RP
3i Certain Implant Hex Regular Platform (4.0mm platform)
Implant Direct ScrewPlant
Implant Direct ScrewPlus

Nobel Replace Tri-Lobe RP
NobelReplace/Select Regular Platform (4.3 and 5.0 Diameter Implants)
Implant Direct Replant Regular Platform (4.3 and 5.0 Diameter Implants)
Implant Direct Replus Regular Platform (4.3 and 5.0 Diameter Implants)
Implant Direct ReActive Regular Platform (4.3 and 5.0 Diameter Implants)

Nobel Replace Tri-Lobe WP
NobelReplace/Select Wide Platform (5.0 and 6.0 Diameter Implants)
Implant Direct Replant Wide Platform (5.0 and 6.0 Diameter Implants)
Implant Direct RePlus Wide Platform (5.0 and 6.0 Diameter Implants)
Implant Direct ReActive Wide Platform (5.0 and 6.0 Diameter Implants)

Nobel Active NP
NobelActive Narrow Platform (3.5 and 4.3 Diameter Implants)
Nobel Replace Conical Connection
Implant Direct InterActive Narrow Platform (3.5 and 4.3 Diameter Implants)

Nobel Active RP
NobelActive Regular Platform (4.3 and 5.0 Diameter Implants)
Nobel Replace Conical Connection
Implant Direct InterActive Regular Platform (4.3 and 5.0 Diameter Implants)

TSV 5.7
Zimmer TSV 6.0 Implant (5.7mm Platform)
Implant Direct Legacy 5.7
MIS 5 and 6

Screw Removal Kit (SRK-01)

Product form
    Free pickup in our warehouse

    SKU: SRK-01

    $500.00$450.00

        Description

        Safely remove damaged/stripped dental implant connection abutment screw. Rescue kit for all dental implant specialist.

        The only you kit you need to remove a fractured or broken screw and save the implant. Based on the proven counter-torque and reverse screw technique.

        Fractured Screw Removal Kit Components

         Reverse Threaded Screw Removal Tool

        The kit utilizes specialized screw removal drills to prepare a channel in the long axis of the screw. Then a self-tapping, reverse threaded screw removal tool is inserted and turned slowly to provide an engaging instrument which grabs hold of the fractured screw and unscrews it.

        Certain Guides: Protect Implant Body and Position Drill in Center

        The system also includes a series of certain guides which protect the internal aspect of the implant body from the damaging effects of drills touching the threaded internal surface. The guide abutment system also allows the initial drill and the reverse tip to be positioned in the center of the broken screw.

        Procedure:

        • Pick guide for abutment
        • Attach guide and hold it with holder
        • Use screw remover drill to take hold of the core of the broken screw in a reverse manner (1200 rpm)
        • Use tap to remove the broken screw in a reverse manner (30 rpm)

        Kit includes:

        • 1 Tap (SRT-01)
        • 2 drills (SRD-01)
        • Adaptor (SRA-01)
        • 1 guide handle (SRG-H)
        • 1 remover wrench (FRW-01)
        • 6 guides for various implant systems (see below)

        Instruction for Use including screw guide compatibility chart

        Included compatibility guides:

        Hex Guide (H)
        Astra Osseospeed TX 4.5/5.0
        Dentium Internal Hex
        Hiossen SS and GS
        Lifecore Stage 1
        Megagen ExFeel Internal Hex
        NeoBiotech Internal Hex

        Octa Guide (O)
        Implant Direct SwishPlant
        Implant Direct SwishPlus
        Straumann ITI Tissue Level
        Zimmer SwissPlus

        External Mini (M)
        Hiossen US (ET III)
        Megagen ExFeel External Hex
        Nobel Biocare Branemark System NP
        Steri-Oss HexLoc 3.25
        Steri-Oss Replace SD
        Sterngold-Implamed NP

        External Regular (W)
        3i Cylindrical 4.0
        3i Osseotite Miniplant 3.75
        3i Osseotite
        Nobel Biocare Branemark System Mk III and Mk IV
        Nobel Biocare Branemark System Mk III Groovy (Nobel Speedy Groovy)
        IMZ HexHead 3.3 and 4.0
        Intralock 3.75 and 4.0
        Keystone Restore
        Lifecore Sustain
        Megagen ExFeel External 4.0
        Nobel Biocare Branemark System RP 4.1
        Steri-Oss Hex-Loc 3.8 and 4.5
        Steri-Oss Replace MD
        Steri-Oss Replace WD
        Sterngold Swede-Vent 3.75

        TSV 3.7/4.7
        BioHorizons Tapered Internal 3.7 and 4.7
        BioHorizons Tapered Internal Plus 3.7 and 4.7
        BioHorizons Tapered Tissue 3.7 and 4.7
        BioHorizons Single-Stage 3.7 and 4.7
        BlueSky Bio Internal Hex 3.5 and 4.5
        BlueSky Bio Molar 3.5 and 4.5
        Implant Direct SwishPlant 3.7
        Implant Direct SwishPlus 3.7
        Implant Direct Legacy (3.7 and 4.7 internal hex)
        MIS 3.3, 3.75, and 4.2
        Zimmer TSV 3.7, 4.1 and 4.7
        Zimmer Bio-Vent SD and MD
        Zimmer Core-Vent SD and MD
        Zimmer Micro-Vent SD and MD
        Zimmer SwissPlus 3.7 (Internal Hex)

        Tri-Lobe
        Implant Direct RePlant 3.5
        Implant Direct RePlus 3.5
        Implant Direct ReActive 3.5
        Nobel Biocare Tri Lobe Systems NP


        Other Guides Available for Purchase Separately


        3i Internal NP
        3i Certain Implant Hex Narrow Platform (3mm Platform)
        Implant Direct ScrewPlant
        Implant Direct ScrewPlus
        Zimmer SwissPlus 3.7, 4.1, 4.8 (Internal Octagon)

        3i Internal RP
        3i Certain Implant Hex Regular Platform (4.0mm platform)
        Implant Direct ScrewPlant
        Implant Direct ScrewPlus

        Nobel Replace Tri-Lobe RP
        NobelReplace/Select Regular Platform (4.3 and 5.0 Diameter Implants)
        Implant Direct Replant Regular Platform (4.3 and 5.0 Diameter Implants)
        Implant Direct Replus Regular Platform (4.3 and 5.0 Diameter Implants)
        Implant Direct ReActive Regular Platform (4.3 and 5.0 Diameter Implants)

        Nobel Replace Tri-Lobe WP
        NobelReplace/Select Wide Platform (5.0 and 6.0 Diameter Implants)
        Implant Direct Replant Wide Platform (5.0 and 6.0 Diameter Implants)
        Implant Direct RePlus Wide Platform (5.0 and 6.0 Diameter Implants)
        Implant Direct ReActive Wide Platform (5.0 and 6.0 Diameter Implants)

        Nobel Active NP
        NobelActive Narrow Platform (3.5 and 4.3 Diameter Implants)
        Nobel Replace Conical Connection
        Implant Direct InterActive Narrow Platform (3.5 and 4.3 Diameter Implants)

        Nobel Active RP
        NobelActive Regular Platform (4.3 and 5.0 Diameter Implants)
        Nobel Replace Conical Connection
        Implant Direct InterActive Regular Platform (4.3 and 5.0 Diameter Implants)

        TSV 5.7
        Zimmer TSV 6.0 Implant (5.7mm Platform)
        Implant Direct Legacy 5.7
        MIS 5 and 6
